Introduction
This tester is an innovative product that is compact, handheld, battery powered, and easy to carry.
The tester is mainly suitable for testing the contact resistance of the high and low voltage switch, the DC resistance of the high and low voltage cable line and other micro ohm resistance measurement, the test speed is fast and the accuracy is high.
Features
1. Output current up to 200A, multi-grade current optional, wide measuring range.
2. A variety of measurement time options to meet a variety of field applications.
3. Wide range, high precision, resolution 0.1uΩ.
4. Lithium battery power supply, a single charge can be carried out more than 500 consecutive tests, the measurement process is simple and convenient.
5. With open circuit protection, overheat protection and other protection functions.
6. Using 4.3 inch industrial high brightness color LCD screen, the display is clearly visible in strong sunlight.
7. Equipped with external printer, easy to print data.
8. With local storage and U disk storage, easy to save data.
Technical Indicators
| Output current | 200A,150A,100A,50A |
| Measurement range | 200A 0-1000u Ω,150A 0-1400u Ω,100A 0-2000u Ω,50A 0-10m Ω |
| Accuracy | ± (reading × 0.5%+1u Ω) |
| Resolution | 0.1u Ω |
| Measurement time | Fast, 10 ~ 60 seconds optional |
| Automatic shutdown | 5 minutes no operation automatically shut down |
| Working power supply | built-in lithium battery or external charger, charger input 100 ~ 240VAC, 50Hz/60Hz |
| Charging voltage | 12.6V |
| Charging current | ≤3A |
| Host size | 220mm ×168mm ×65mm |
| Host weight | 1.6kg (excluding test line) |

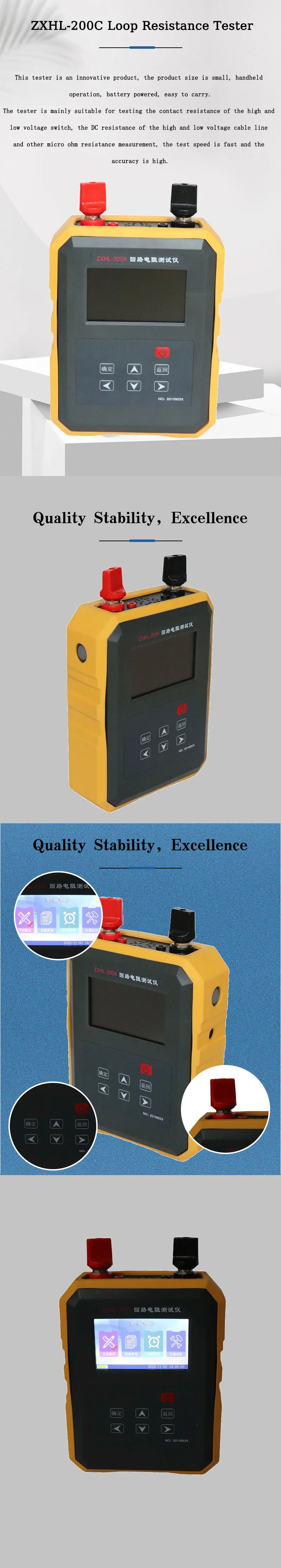

Product pictures
Packaging & Shipping
Packaging & Shipping
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
Company Information
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
